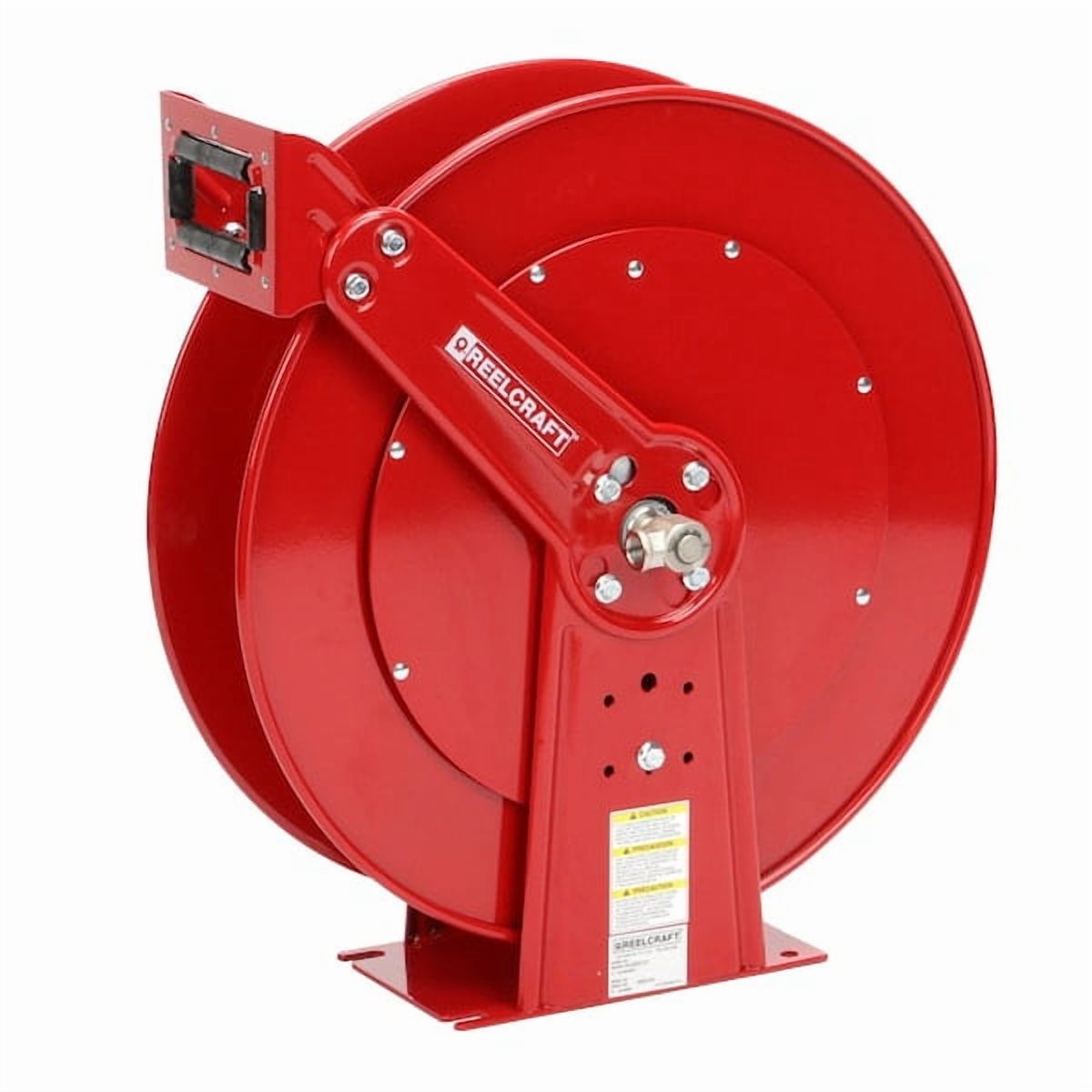

REELCRAFT PW81000 OHP 3/8" x 100 ft. Spring Return Hose Reel 5000 psi
Product details
| Management number | 230693306 | Release Date | 2026/06/18 | List Price | $394.13 | Model Number | 230693306 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
REELCRAFT PW81000 OHP is a spring return hose reel for water and pressure wash service. It is built with a steel frame and powder-coated finish, and it is designed to handle up to 100 ft of 3/8 in I.D. hose. The reel includes a high-pressure water swivel with a 1/2 in (F)NPT inlet and 3/8 in (F)NPT outlet, and it is rated for operation up to 5,000 psi. This stationary reel can be mounted on a bench, truck, ceiling, floor, or wall for pressure washer and equipment cleaning setups. Key Features: Spring return drive: Retracts the hose automatically after use. Hose capacity: Holds up to 100 ft of 3/8 in I.D. hose. Pressure rating: Rated for up to 5,000 psi for pressure wash applications. Swivel construction: High-pressure nickel-plated steel water swivel with full-flow design for water service. Connection sizes: Reel inlet is 1/2 in (F)NPT; hose outlet is 3/8 in (F)NPT; hose end connection is 3/8 in (M)NPT. Material and finish: Steel reel construction with powder-coated components and corrosion-resistant design. Bearing system: Ball bearings are permanently lubricated. Latch: Spring-loaded locking latch helps hold the hose at the selected length. Mounting options: Can be mounted on a bench, truck, ceiling, floor, or wall. Operating temperature range: 32 to 210 degrees F. Overall size: 24 in L x 10 1/2 in W x 25 3/8 in H.
- Corrosion-Resistant:Yes
- Drive Type - Hose Reels:Spring Return
- Drive Type:Spring Return
- Duty Rating:Heavy Duty
- Enclosed Reel:No
- Enclosed:No
- Finish - Hose Reels:Powder Coated
- Height:25 3/8 in
- Hose Capacity:100 ft (3/8 in I.D.)
- Hose End Configuration:3/8 in (M)NPT
- Hose Ends:3/8 in (M)NPT
- Hose Included:No
- Hose Inside Dia.:3/8 in
- Hose Length:100 ft
- Hose Outlet:3/8 in (F)NPT
- Hose Outside Dia.:0.73"
- Hose Reel Primary Application:Pressure Washer
- Hose Reel Type:Free Standing Hose Reel, Vehicle, Wall Mount Hose Reel
- Housing Material:Steel
- Includes Hose:No
- Includes Leader Hose:No
- Media - Hose Reels:Water
- Minimum Operating Temperature:32 Degrees F
- Mount Base Height:12 in
- Mount Base Width:7 3/8 in
- Mount Hole Diameter:1/2 in
- Mounting Hole Center to Center Height:10 1/2 in
- Mounting Hole Center to Center Width:8 1/8 in
- Mounting:Bench and Truck, Ceiling, Floor, Wall
- Number of Guide Arms:Double Arm
- Number of Mount Holes:4
- Twin Hose Compatible:No
- Type:Pressure Wash
- Weight:86 lb
- Width:10 1/2 in
| Hose reel type | Wall-Mounted Hose Reel |
|---|---|
| Holding capacity | 100 ft |
| Features | Tangle Proof |
| Material | Steel |
| Brand | Reelcraft |
| Color | Multicolor |
| Height | 25.38 in |
| Weight | 81 lb |
| Has written warranty | No |
| Model | PW81000 OHP |
| Pack quantity | 1 |
