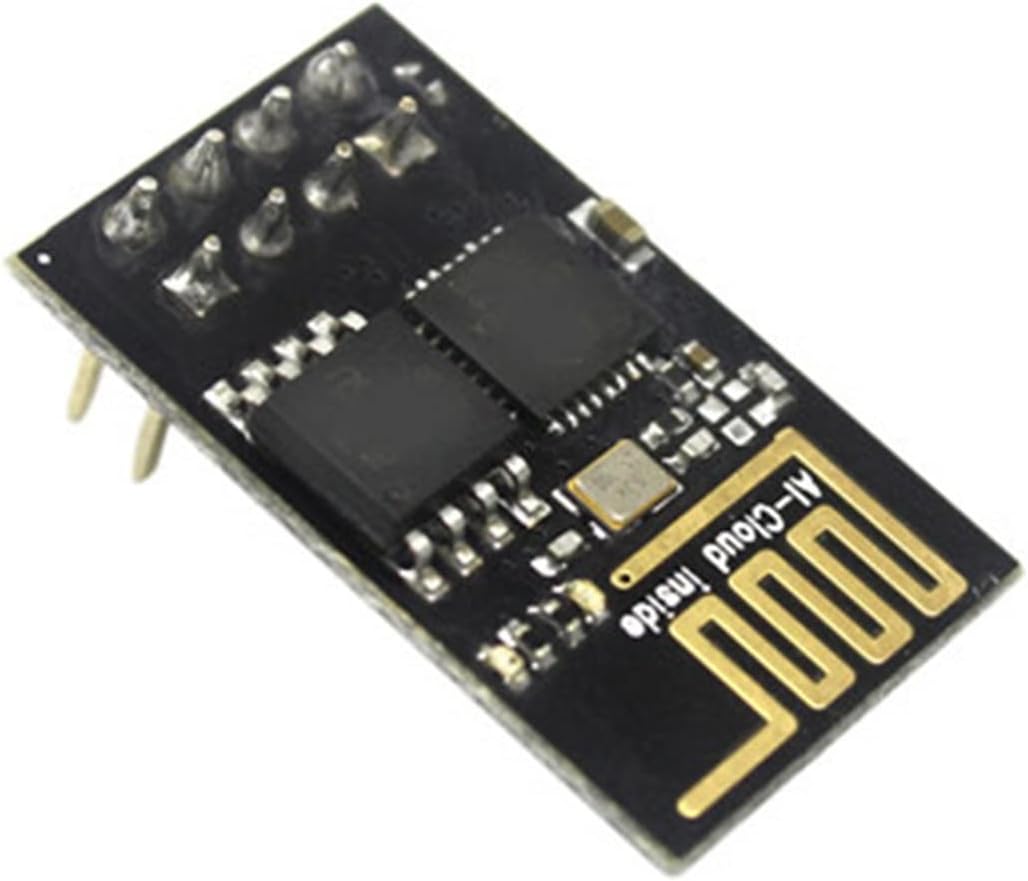

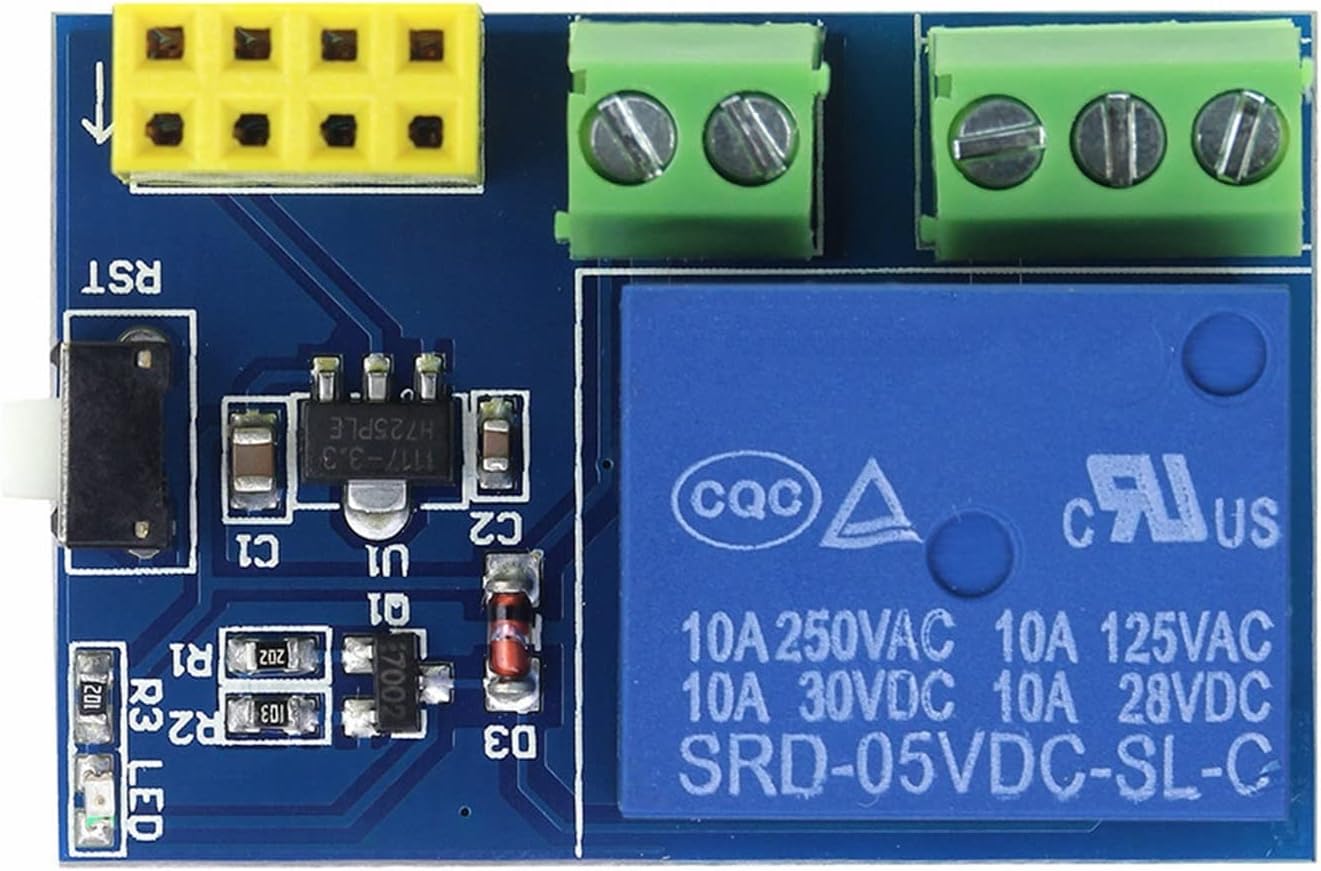

ESP8266 ESP-01/01S 5V WiFi Relay Module Things Smart Home Remote Control Switch Phone APP ESP01 ESP-01 Wireless(Esp-01s Kit)
Product details
| Management number | 211093423 | Release Date | 2026/04/04 | List Price | $13.80 | Model Number | 211093423 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
relayChoose to send according to the order, confirm your own choice before purchasingESP8266 module has a timeout mechanism, when the phone for some time (the default 180S) did not give instructions to the module, the module will kick off the phone, the computer can send AT + CIPSTO = to modify this time (Time range 0-7200), such as: AT + CIPSTO = 3600.When the module on the WIFI module is unplugged, USB to TTL module RX, TX, GND pins were connected to the module RX, TX, GND pin, IN +, IN- 5V power supply, then the module can be used as a USB Relays to use, scalability.Mobile phone equipped with WiFi module;Mobile phone and WiFI module equipped with the same router, through the mobile phone APP to control the relay; this mode, the transmission distance depends on the signal router.Product size: 45 * 28mmOperating voltage: DC5VCommunication: WIFI (ESP8266 module)Serial communication parameters: 9600,8,1,0,0Transmission distance: the maximum transmission distance of 400m (open environment, mobile phone equipped with WIFI module)Load: 10A/250VAC 10A/30VDC, the relay pull 100,000 times
- relay
| Item Weight | 12.3 ounces |
|---|---|
| Manufacturer | XWZHCCWCO |
| Item model number | XWZHCCWCO |
| Batteries required | No |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
