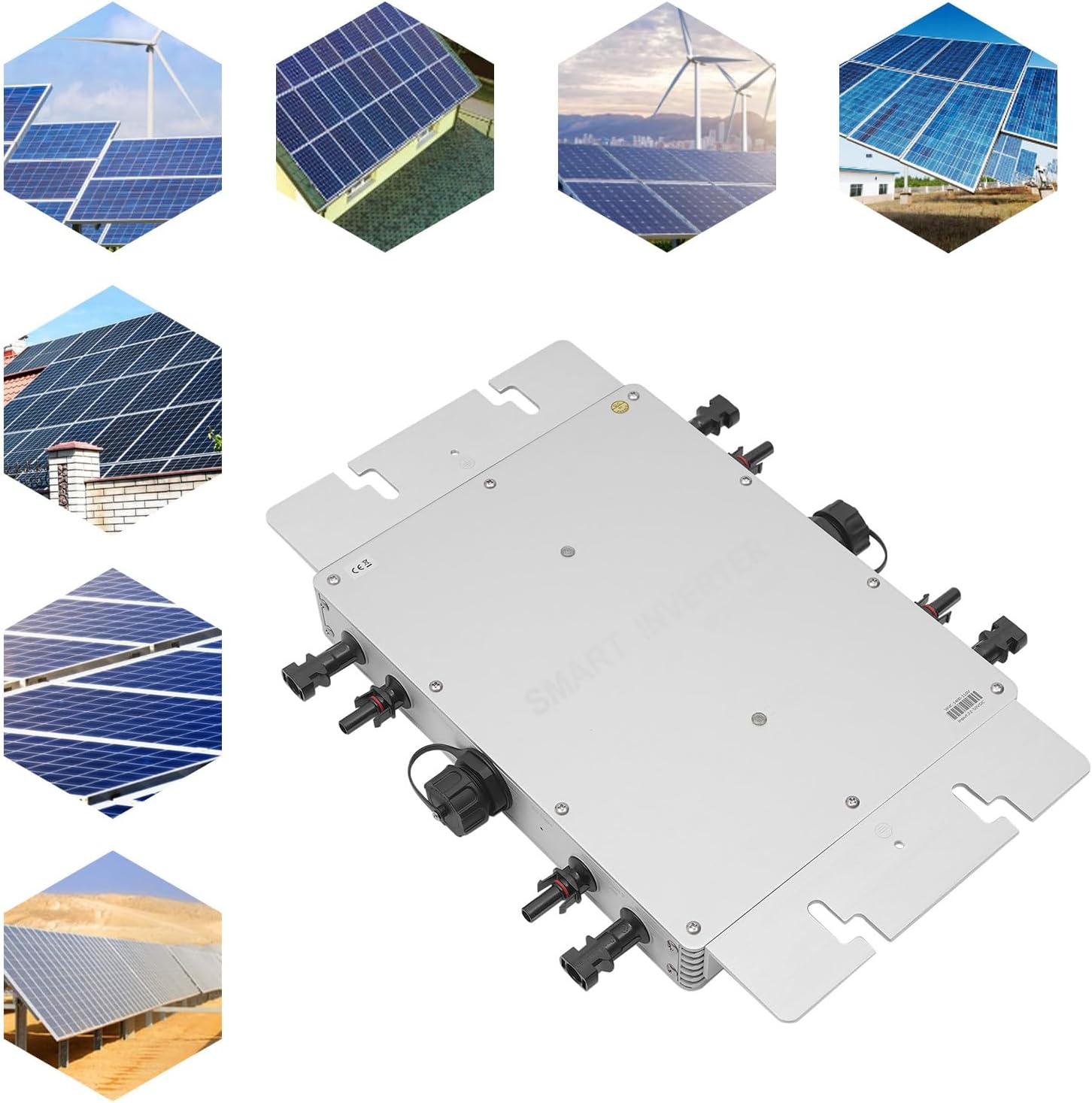

1400W Solar Grid Tie Inverter Microinverter Waterproof Self Cooling 110V/80-160VAC Output Mirco Inverter Automatic Identification Power Inverters

An inverter can efficiently turn the direct current generated by solar panels into the alternating current used by household appliances. This microinverter makes it easier. Made of fine aluminum alloy, this IP65 waterproof inverter has a wide range of functions, good safety, convenient installation, and high-cost performance. We believe this inverter will not disappoint you.SpecificationModel: WVC-1400WColor: SilverMaterial: Aluminium AlloyPower: 1400WVoltage: 110VPlug Type: US StandardMaximum Input DC Voltage: 54VPeak Power Tracking Voltage: 22-45VOperating Voltage Range: 17-50VMin/Max Start-up Voltage: 22-50VMaximum DC Short Circuit Current: 80AMaximum Input Operating Current: 58AOutput Peak Power: 1400wattRated Output Power: 1350wattRated Output Current: 12.8ARated Voltage Range: 80-160VACRated Frequency Range: 57-62.5HzPower Factor: ＞99％Number of Circuit Connections Per String: 3Static MPPT Efficiency: 99.5%Maximum Output Efficiency: 91.2%Night Time Power Loss: <1WTotal Flow Distortion: <5%Operating Temperature Range: ﹣40℃~60℃/﹣40℉~140℉Waterproof Rating: IP65Cooling Method: Self-coolingCommunication Mode: Power Line CarrierPower Transmission Mode: Reverse Transmission, Load PriorityGross Weight: 4.2kg/9.26lbsNet Weight: 3kg/6.61lbsProduct Size: 21*37.4*4cm/8.27*14.72*1.57inchPackage Size: 48*35*12cm/18.9*13.78*4.72inchPackage Included1* Solar Grid Tie Micro Inverter1* Power Cord2* Manuals(English+Chinese)1* Warranty CardOther Accessories for Installation

• Premium Material: The inverter is made of aluminum alloy, which is stable, and not easy to rust. You can use it for a long time without frequent replacement, and your cost can be saved.
• High Efficiency: The solar grid tie micro inverter adopts a unique circuit design, imported industrial electronic components, isolated high-frequency transformer, and unique MPPT technology, with efficiency greater than 99%, so it can achieve sensitive response and more stable maximum power point locking.
• Digital Control: The inverter adopts intelligent soft switching technology, high-frequency switching power supply technology, and 32-bit DSP full digital SPWM control technology, making the product strong anti-interference ability, fast operation speed, high intelligence, and a powerful functional system.
• Good Heat Dissipation Effect: The inverter adopts a self-cooling system and is designed with heat dissipation holes, which can timely reduce the temperature during operation, reduce potential safety hazards and extend the applicable life of the product.
• Application: This solar grid tie micro inverter is applicable to 30V or 36V solar panels, or 36V batteries. The inverter can be widely used in residential or commercial areas, power stations, and schools for turning the direct current generated by solar panels into alternating current.
